Ductile Iron Y strainer DIN /BS standard
Key words:
Ductile Iron Y strainer DIN /BS standard
Classification:
Hotline:
Ductile Iron Y strainer DIN /BS standard

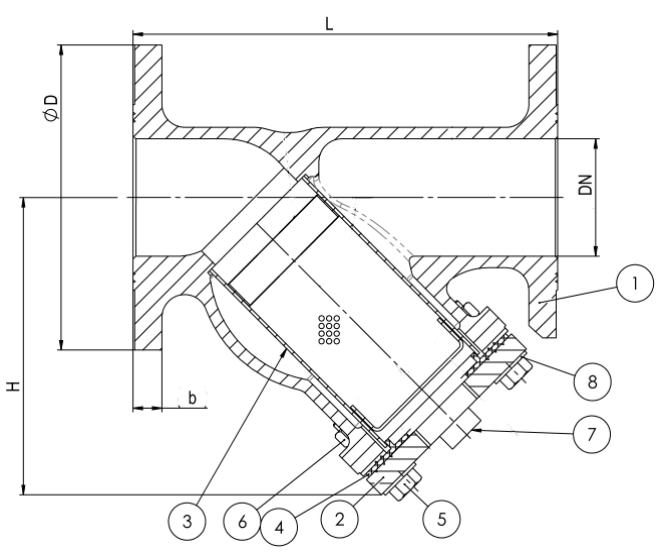

Graphic Details
Face to face
DIN 3202 F1/BS EN 558 F1
Flange connetion
EN 1092-2 PN10/PN16/BS10 Table D
| NO. | Name | Material | |||
| 1 | Body | Ductile Iron | |||
| 2 | Cover | Ductile Iron | |||
| 3 | Filter | SS304 | |||
| 4 | Gasket | EPDM/NBR | |||
| 5 | Bolt | SS/Galvanized Steel | |||
| 6 | Nut | SS/Galvanized Steel | |||
| 7 | Plug | Galvanized Steel | |||
| 8 | Washer | SS/Galvanized Steel | |||
Outline dimensions PN16: mm
| SIZE | L | D | D1 | D2 | b | n | d | H | ||||
| DIN3202 F1 | ||||||||||||
| DN15 | 130 | 95 | 65 | 46 | 14 | 4 | 14 | 65 | ||||
| DN20 | 150 | 105 | 75 | 56 | 16 | 4 | 14 | 70 | ||||
| DN25 | 160 | 115 | 85 | 65 | 16 | 4 | 14 | 80 | ||||
| DN32 | 180 | 140 | 100 | 76 | 18 | 4 | 19 | 90 | ||||
| DN40 | 200 | 150 | 110 | 84 | 18 | 4 | 19 | 135 | ||||
| DN50 | 230 | 165 | 125 | 99 | 20 | 4 | 19 | 150 | ||||
| DN65 | 290 | 185 | 145 | 118 | 20 | 4 | 19 | 160 | ||||
| DN80 | 310 | 200 | 160 | 13 | 22 | 8 | 19 | 200 | ||||
| DN100 | 350 | 220 | 180 | 156 | 24 | 8 | 19 | 240 | ||||
| DN125 | 400 | 250 | 210 | 184 | 26 | 8 | 19 | 290 | ||||
| DN150 | 480 | 285 | 240 | 211 | 26 | 8 | 23 | 330 | ||||
| DN200 | 600 | 340 | 295 | 266 | 30 | 12 | 23 | 380 | ||||
| DN250 | 730 | 405 | 355 | 319 | 32 | 12 | 28 | 480 | ||||
| DN300 | 850 | 460 | 410 | 370 | 32 | 12 | 28 | 550 | ||||
| DN350 | 980 | 520 | 470 | 429 | 36 | 16 | 28 | 680 | ||||
| DN400 | 1100 | 580 | 525 | 480 | 38 | 16 | 31 | 780 | ||||
| DN450 | 1200 | 640 | 585 | 548 | 40 | 20 | 31 | 830 | ||||
| DN500 | 1250 | 715 | 650 | 609 | 42 | 20 | 34 | 910 | ||||
Note: Size above DN500 dimensions please contact us.
